詳細情報 |
|||
| 製品モデル: | IC695ETM001 | ブランド: | エマーソン |
|---|---|---|---|
| ネットワークインターフェイス: | 2つの10/100 Mbps適応RJ45イーサネットポート | 電源仕様: | 3相または単相AC 200〜230V、50/60Hz |
| プロセッサとメモリ: | 内蔵128MB RAMと64MBのフラッシュメモリを備えた200 MHzプロセッサ | 作業温度: | -10°C〜55°C |
| ハイライト: | Emerson Ethernet module high-speed communication,IC695ETM001 Ethernet module hot swapping,Emerson digital I O module redundancy |
||
製品の説明

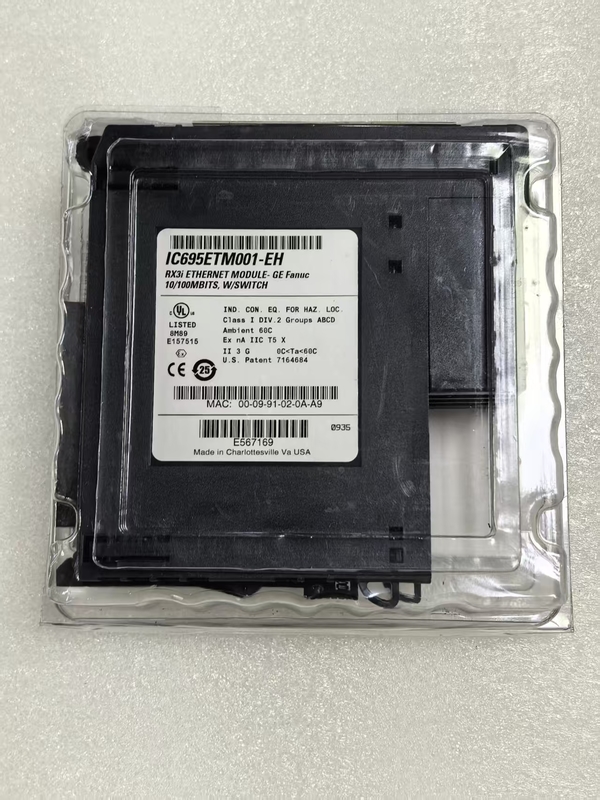

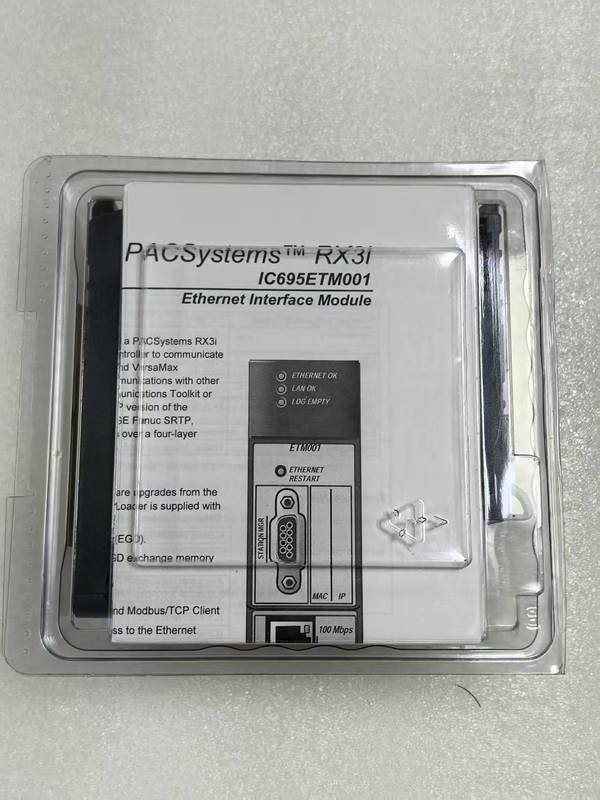

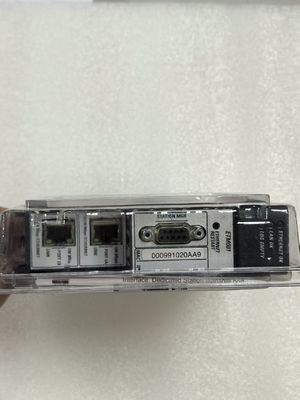

IC695ETM001 Emerson Ethernet module high-speed communication supports hot swapping and redundancy
IC695ETM001 is an industrial grade Ethernet interface module under Emerson, designed specifically for PACSystems RX3i series programmable automation controllers (PACs). It serves as a bridge between the controller and the Ethernet network, enabling high-speed data exchange and multiple industrial protocol communications.
1.IC695ETM001 Emerson characteristic category
- Core function: Provide Ethernet access for PACSystems RX3i controllers and support multiple industrial protocol communications
- Network interface: 2 10/100 Mbps adaptive RJ45 Ethernet ports (supporting auto negotiation, full/half duplex)
- Serial interface: 1 RS-232 serial port (data rate 1200-112200 bps)
- Supported protocols: TCP/IP, SRTP (Service Request Transfer Protocol), Modbus TCP (Server to Client), EGD (Ethernet Global Data), HTTP, FTP, etc
- Processor and Memory: 200 MHz processor with built-in 128MB RAM and 64MB flash memory
- Redundancy function: Supports redundant IP addressing (requires specific firmware and configuration)
- Hot swappable: Supports (requires firmware version 2.51 or above, and compatible backplane)
- Power requirement: 24VDC (± 10%), typical power consumption<5W
- Working environment working temperature: -10 ° C to 55 ° C (some data mention -20 ° C to 60 ° C); humidity: 5% to 95% (no condensation)
- Diagnosis and maintenance: Built in diagnostic function, LED status indicator lights (system status, network status, port activity, etc.), supporting configuration through web interface or software
- Compatibility: Compatible with PACSystems RX3i series controllers and can communicate with GE Fanuc's 90 series, VersaMax series, and other controllers
2.The core function of IC695ETM001 module
It serves as a bridge between the RX3i control system and the Ethernet network, enabling high-speed data exchange and integrated communication. Its embedded switch function supports daisy chain connections, which helps simplify network topology and save switch costs. It supports time synchronization through the SNTP protocol and has station management functions, which can be accessed through Ethernet or serial port, providing configuration, diagnosis, and security control (such as password protection)
3.Its typical application scenarios are very extensive, covering multiple fields of industrial automation:
- Manufacturing: Automated production lines in industries such as automotive, electronics, and food.
- Energy industry: SCADA systems for monitoring and data acquisition in fields such as electricity, oil, and natural gas.
- Infrastructure: water treatment, traffic control systems, building automation, etc
