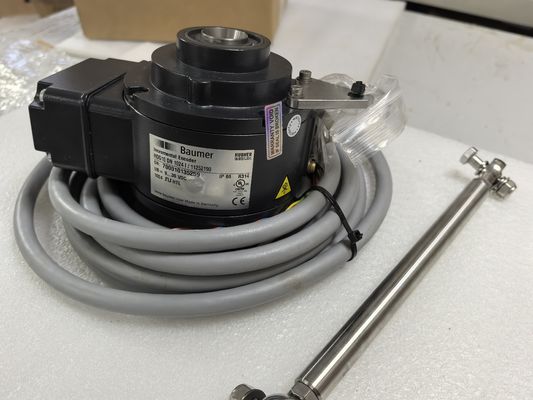

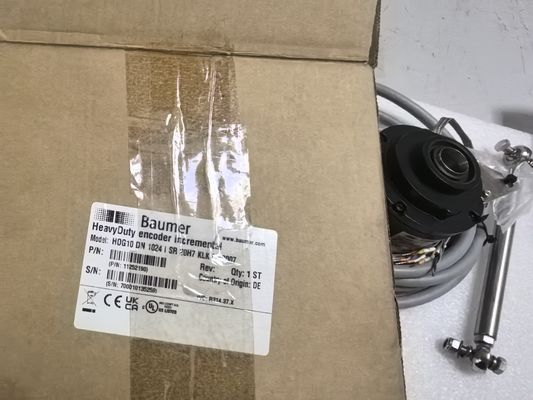

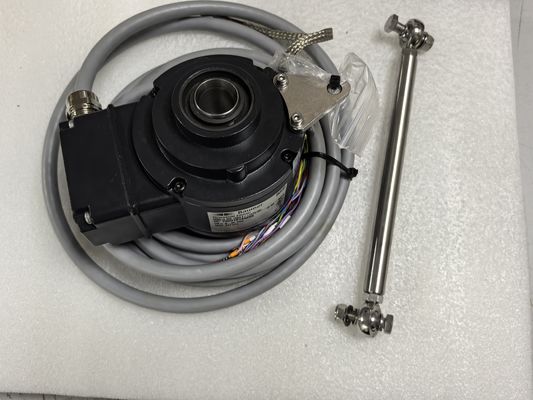

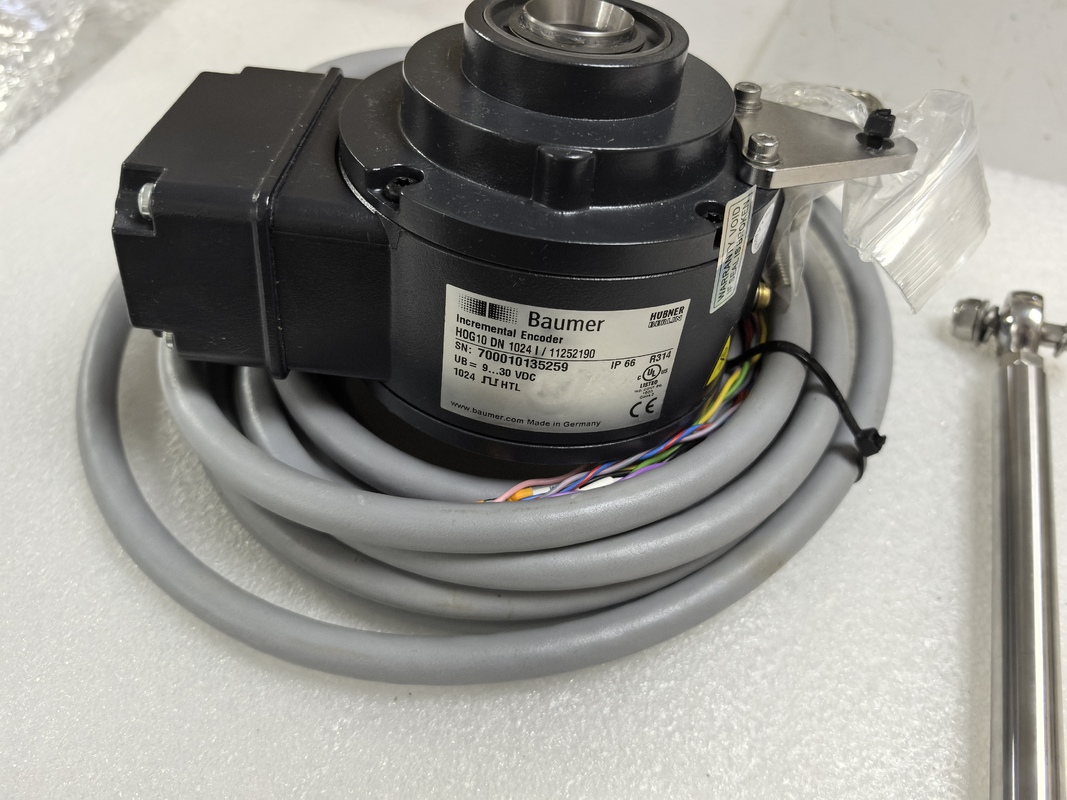

HOG10 DN 1024 I SR 20H7 Baumer 20mm Shaft, with IP66 Rating for Moisture for Extreme Environments
詳細製品概要
モデル: |
HOG10 DN 1024 I SR |
ブランド: |
三菱サーボモーター |
サイクルごとのパルス(PPR): |
1024 |
シャフトタイプ: |
ブラインドホールホローシャフト(20H7mm) |
作業温度: |
-40°C〜+100°C |
HOG10 DN 1024 I SR 20H7 Baumer 20mm Shaft, with IP66 Rating for Moisture for Extreme Environments.
HOG10 DN 1024 I SR 20H7 Parameter category and Specification:
- Basic model: HOG10 DN 1024 I SR
- Pulse Per Cycle (PPR): 1024
- Induction principle: photoelectric type
- Output signals: incremental signals (K1, K2, K0) and inverted signals
- Output circuit: HTL-P (power line driver)
- Power supply voltage: 9... 30 VDC
- Shaft type: blind hole hollow shaft (20H7mm)
- Protection level (IP): IP 66 (dustproof, anti strong water spray)
- Working temperature: -40 ° C to+100 ° C
- Mechanical speed: ≤ 6000 rpm
- Allowable axial load: axial ≤ 450 N, radial ≤ 600 N
- Shaft insulation voltage: up to 2.8 kV
HOG10 DN 1024 I SR 20H7 Main features and advantages:
- Durable and sturdy: The shell is made of die cast aluminum material, and the shaft is made of stainless steel, which can withstand high-strength axial and radial loads, and has excellent resistance to vibration (up to 20 g) and impact (up to 300 g), making it very suitable for heavy machinery applications.
- Environmental adaptability: High protection level (IP66) ensures stable operation in dusty and humid environments. The wide temperature range design enables it to adapt to extreme temperature changes from cold zones to high-temperature workshops.
- High performance electrical characteristics: The HTL-P output circuit supports long-distance signal transmission (up to 350 meters) and has high anti-interference performance. The shaft insulation design can effectively prevent damage to the encoder caused by shaft current, which is crucial for large-scale motor drive applications.
- Flexible installation: The product is equipped with a large junction box for easy wiring
Similer item we can supply:
HOG10 DN 1024 I LR 16H7
HOG10 DN 1024 R LR 17K + FSL4
