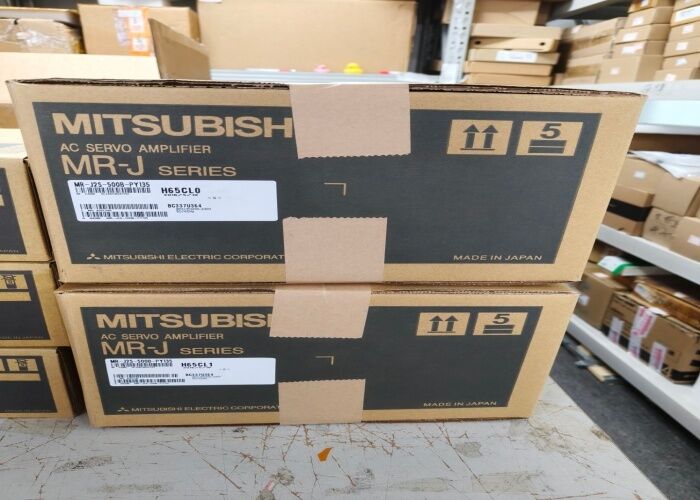

MR-J2S-500B-PY135 MITSUBISHI Industrial Servo Drives 50Hz/60Hz 200-240V

MR-J2S-500B-PY135 MITSUBISHI Industrial Servo Drives 50Hz/60Hz 200-240V

MR-J2S-500B-PY135 Description

MR-J2S-500B-PY135 Features

• •
  High-Response Positioning:​ Equipped with a high-performance 22-bit encoder interface, enabling ultra-fine resolution for precise motor control and smooth operation even at low speeds.
• •
  High Torque & Overload Capacity:​ Delivers a continuous output current of 500A, with a high overload capability (350% for several seconds) to handle peak demands during acceleration and sudden load changes.
• •
  Easy Setup and Tuning:​ Features auto-tuning functionality that automatically adjusts servo gains to match the mechanical system, reducing setup time and optimizing performance.
• •
  Strong Regenerative Braking:​ Includes a powerful built-in regenerative brake circuit. For high-duty cycles, an external regenerative brake resistor (often required for this model) can be connected to efficiently dissipate energy.
• •
  Multiple Control Modes:​ Supports various control modes including Torque Control, Speed Control, and Position Control (using pulse train input from a PLC or motion controller).
• •
  Comprehensive Protection Functions:​ Incorporates multiple safety features such as overcurrent, overload, overvoltage, and overspeed protection to ensure the safety of the driver, motor, and machinery.

MR-J2S-500B-PY135 Material & Typical Applications

• •
  Material:
  • •
    Chassis:​ Metal (e.g., aluminum alloy) for structural strength and heat dissipation.
  • •
    Internal Components:​ Printed Circuit Boards (PCBs) with electronic components (ICs, capacitors, power transistors), heat sinks, and cooling fans.
• •
  Primary Uses:
  • •
    Industrial Machinery:​ Large injection molding machines, metal forming presses, large CNC machine tools.
  • •
    Material Handling:​ High-speed, high-load conveyor systems, automated storage/retrieval systems (AS/RS), large robotic arms.
  • •
    Printing and Paper Converting:​ Drive systems for printing presses, cutters, and winders requiring precise synchronization.
  • •
    Textile Machinery:​ Large looms and spinning machines.

MR-J2S-500B-PY135 Important Parameters
