| 起源の場所: | アメリカ合衆国 |
| ブランド名: | AB |
| モデル番号: | 22F-D4P2N103 |

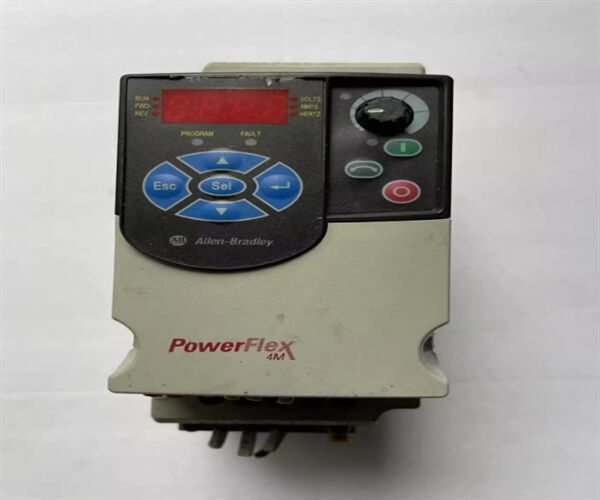

Allen Bradley PowerFlex 4M 22F-D4P2N103
Allen Bradley Drives, 480VAC, 3PH, 4.2 Amps, 1.5 kW, 2 HP, Frame Size A, IP20 (Open), LED Display, Fixed Digital Keypad, No CE Compliant Filter, No Brake Drive, VFD Drive.
The PowerFlex 4M VFD Drives are the smallest and most cost effective members of the PowerFlex drives. Easy to feed wiring and easy programming provide the flexibility to handle a broad range of applications. This Module uses Integral RS-485 communications with IP20, NEMA/UL open type enclosures V/Hz control, slip compensation. It is also equipped with Drive overload protection and ramp regulation.
| Manufacturer | Allen Bradley |
|---|---|
| Category | Drives |
| Product Line | PowerFlex 4M |
| Part Number | 22F-D4P2N103 |
| UPC | 820919785184 |
| Weight | 2.44 lbs (1.11 kg) |
| Input Voltage | 380-480VAC |
| Input Phase | 3-Phase |
| Input Current | 6.0 A |
| Output Voltage | 0-460VAC |
| Output Current | 4.2 A |
| Output Power | 1.5 kW (2.0 HP |
| Output frequency | 0-400 Hz |
| Efficiency | 0.975 |
| I/O | Discrete Inputs: Five (5) Sink / Source Discrete Outputs: One (1) Form C Contacts Analog Input: One (1) Analog Input 0-10VDC; 0- 20mA |
| Installation | Panel Mount |
| Enclosure Rating | IP20 / NEMA UL Open Type |
| Frame | B |
| Control Method | Volts / Hertz Control performance |
| Built-in communication port | RS485 |
| Optional communication protocols | BacNet; LonWorks; ProfiBus; Ethernet; DeviceNet; ControlNet |
| Amperage | 4.2 |
| Wattage | 1.5 Kilowatt |
| Enclosure Type | Open- IP20 |
| Input Power | 480 Volts- Alternating Current |
| Phase | Three-Phase |
| Filter | Without CE Compliant Filter |
| Horsepower | 2 Horsepower |
