Description of  HG-KR23BJ

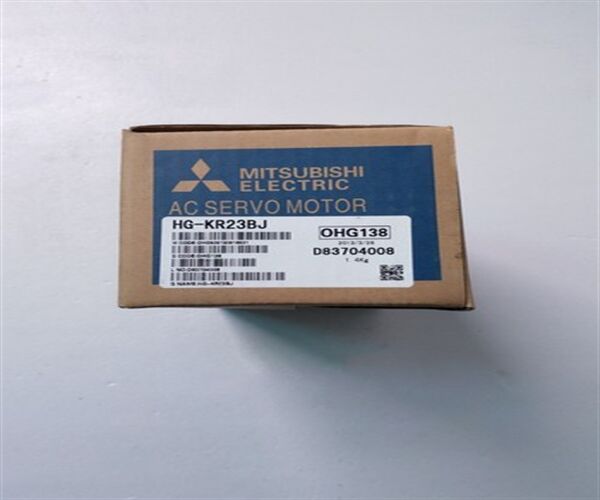

The Mitsubishi HG-KR23BJ AC Servo Motor offers exceptional performance and reliability for demanding industrial applications. This servo motor features a rated output power of 200W, making it suitable for a wide range of motion control tasks. Its rated speed is 2000 RPM, and it delivers a rated torque of 1.0 Nm, ensuring precise and responsive operation. The maximum speed achievable is 3000 RPM.

This motor operates on a 200V AC power supply. The HG-KR23BJ incorporates advanced features such as a built-in encoder with an incremental encoder system, providing high-resolution feedback for accurate positioning and speed control. Its compact design allows for easy integration into various machine setups, even where space is limited.

Key features include high-speed response, low cogging torque, and robust construction for long-lasting performance. The motor is designed to minimize vibration and noise, contributing to a stable and smooth operation. It is suitable for applications in robotics, automated machinery, CNC machines, and other precision motion control systems. The Mitsubishi HG-KR23BJ AC Servo Motor ensures high efficiency and precise control, enhancing the overall performance of your equipment.

Specifications of  HG-KR23BJ:

• Product Title: Mitsubishi HG-KR23BJ AC Servo Motor
• Model: HG-KR23BJ
• Rated Output Power: 200W
• Rated Speed: 2000 RPM
• Rated Torque: 1.0 Nm
• Maximum Speed: 3000 RPM
• Power Supply: 200V AC
• Encoder Type: Incremental
• Applications: Robotics, Automation, CNC Machines

Note: The symbols ABC... show the recommended sequence to select the servo motor and cables Servo motor

A Select motor from families SGMAH, SGMPH, SGMGH, SGMUH, SGMSH, SGMBH using motor tables in next pages.

Servo drive

Note: Choosing Sigma-II drive or XtraDrive affects to the encoder cable needed. B Refer to Sigma-II servo drive or XtraDrive chapter for detailed drive specifications and selection of drive accessories.
