CM579-PNIO 1SAP170901R0101 ABB PLC Programmable Logic Controller 100–240 V AC
CM579-PNIO 1SAP170901R0101 ABB PLC Programmable Logic Controller 100–240 V AC
製品詳細:
起源の場所:
ドイツ
ブランド名:
ABB
証明:
CE
モデル番号:
CM579-PNIO 1SAP170901R0101
詳細情報
起源の場所:
ドイツ
ブランド名:
ABB
証明:
CE
モデル番号:
CM579-PNIO 1SAP170901R0101
インチ:
8インチ
出力:
5-30 VDC
電源:
100~240V AC
メタルファクター:
6AV-
ハイライト:
High Light
ハイライト:
ABB PLC controller 100–240V AC
,
CM579-PNIO programmable logic controller
,
1SAP170901R0101 PLC industrial automation
取引情報
最小注文数量:
1
価格:
交渉可能
パッケージの詳細:
新しい、オリジナル
受渡し時間:
5~7日
支払条件:
T/T、L/C
供給の能力:
100
製品の説明

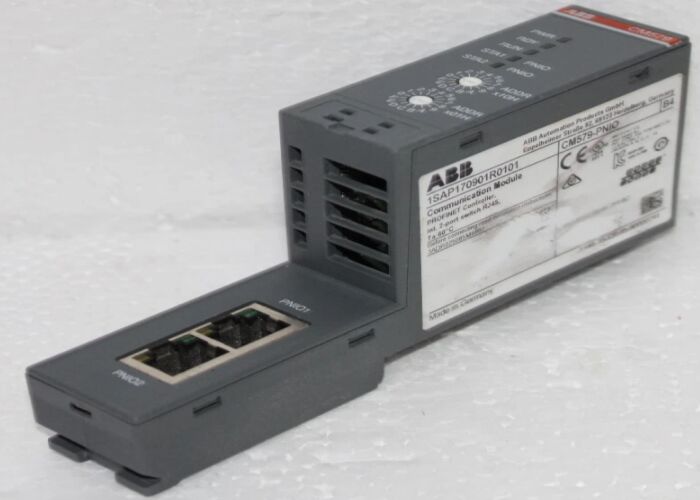

CM579-PNIO 1SAP170901R0101 ABB PLC Programmable Logic Controller 100–240 V AC
CM579-PNIO Description
The ABB CM579-PNIO is a high-performance communications module designed for the ACS580 industrial drive series. It serves as a fieldbus adapter, enabling seamless integration of the drive into PROFINET networks. This module plugs directly into the drive's standard option slot, allowing for fast, real-time communication and data exchange with a central controller, such as a Siemens PLC. The CM579-PNIO is engineered to support key PROFINET features like PROFIsafe, PROFIdrive profile, and isochronous real-time (IRT) communication, making it ideal for advanced factory automation systems that demand precise synchronized control, diagnostics, and integration within Industry 4.0 and Industrial Internet of Things (IIoT) architectures.CM579-PNIO Features
Seamless PROFINET Integration: Enables the ACS580 drive to function as a standard PROFINET device (Device) on a PROFINET IO network, supporting both real-time (RT) and isochronous real-time (IRT) communication classes.
Plug-and-Play Installation: Modules directly into the dedicated slot on the ACS580 drive without requiring internal wiring for communication, simplifying installation and reducing setup time.
PROFIsafe Support: Integrates safety functionality, allowing the transmission of safety-related signals (e.g., Safe Torque Off, Safe Stop) over the same PROFINET cable, reducing the need for hardwired safety circuits.
PROFIdrive Profile Compliance: Conforms to the PROFIdrive application profile, ensuring standardized parameter handling, diagnostics, and interoperability with other PROFIdrive-compliant devices from different manufacturers.
Dual-Port Switch: Features two RJ45 Ethernet ports with an integrated switch, allowing linear network topology (daisy-chaining) without the need for an external network switch, saving cabinet space and cost.
Advanced Diagnostics: Provides extensive diagnostic information for both the drive and the network, accessible through the drive's control panel or the engineering tool, facilitating quick troubleshooting and maintenance.
CM579-PNIO Material & Application
Material: The module housing is made of high-quality, durable plastic (e.g., PBT) resistant to common industrial chemicals. The internal printed circuit board (PCB) uses industrial-grade components, and the RJ45 ports feature robust metal connectors for reliable network connectivity. It is designed for use in controlled electrical environments (installed within a drive/IP20 enclosure).
Application: This module is used to integrate ABB ACS580 variable frequency drives into automation systems that use PROFINET as the primary fieldbus network. Typical applications include:
Conveyor Systems and Material Handling
Pump and Fan Control in Water/Wastewater and HVAC
Mixers, Extruders, and other Process Machinery
Packaging Lines and Printing Presses
Any automated system with a Siemens PLC (S7-1200, S7-1500, etc.) as the main controller.
CM579-PNIO Key Specifications
Parameter
Specification
Model
CM579-PNIO
Compatible Drive Series
ACS580-01/-04 Industrial Drives (with standard option slot)
Fieldbus Protocol
PROFINET IO
PROFINET Conformance Class
CC-A / CC-B
Real-Time Classes
RT (Real-Time), IRT (Isochronous Real-Time)
Safety Protocol
PROFIsafe (Option)
Application Profile
PROFIdrive
Network Interface
2 x RJ45, 10/100 Mbps, Integrated 2-port switch
Electrical Connection
Plug-in module to drive option slot. Power is supplied from the drive (+24V DC).
LED Indicators
For power, network status, link/activity, and diagnostics.
Operating Temperature
0 °C to +55 °C (without freezing/condensation)
Protection Degree
IP20 (requires installation inside the drive/enclosure)
Certifications
CE, UL, cUL, PROFINET conformance tested
