| 起源の場所: | 日本 |
| ブランド名: | HG-KN43K |
| 証明: | CE |
| モデル番号: | HG-KN43K |

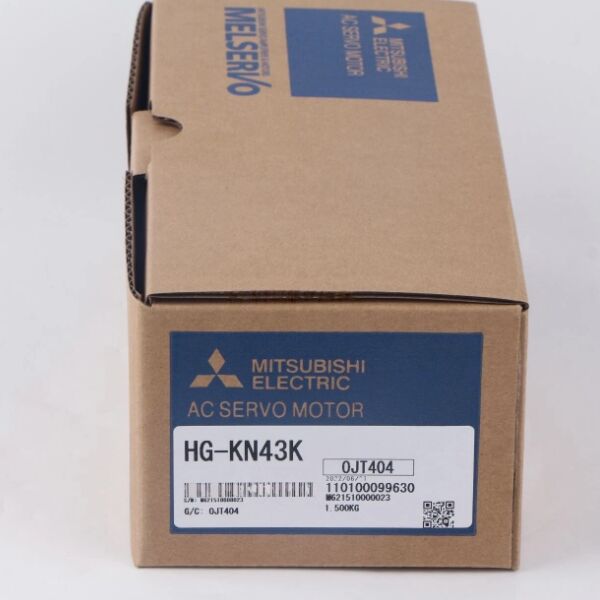

HG-KN43K Industrial Servo Drives AC 220V / AC 380V -≤2200ml/Min 200-230v
| Parameter | Specification |
|---|---|
| Part Number | HG-KN43K |
| Motor Type | Low-Inertia Brushless AC Servo Motor |
| Rated Output Power | 0.4 kW |
| Rated Torque | 1.3 N·m |
| Peak Torque | 3.9 N·m |
| Rated Speed | 3000 rpm |
| Maximum Speed | 5000 rpm |
| Rotor Inertia | 0.064 × 10⁻⁴ kg·m² |
| Rated Current | 2.3 A |
| Encoder Type | Incremental Encoder |
| Shaft Type | Keyed shaft (K type) |
| Insulation Class | Class B |
| Protection Rating | IP67 |
| Cooling Method | Natural air cooling |
| Operating Temperature | 0°C ~ +40°C |
| Storage Temperature | -20°C ~ +70°C |
| Humidity | 5–95% RH, non-condensing |
| Flange Size | 60 × 60 mm |
| Shaft Diameter | φ14 mm |
| Weight | Approx. 1.0 kg |
| Certifications | CE, UL, cUL, RoHS |
